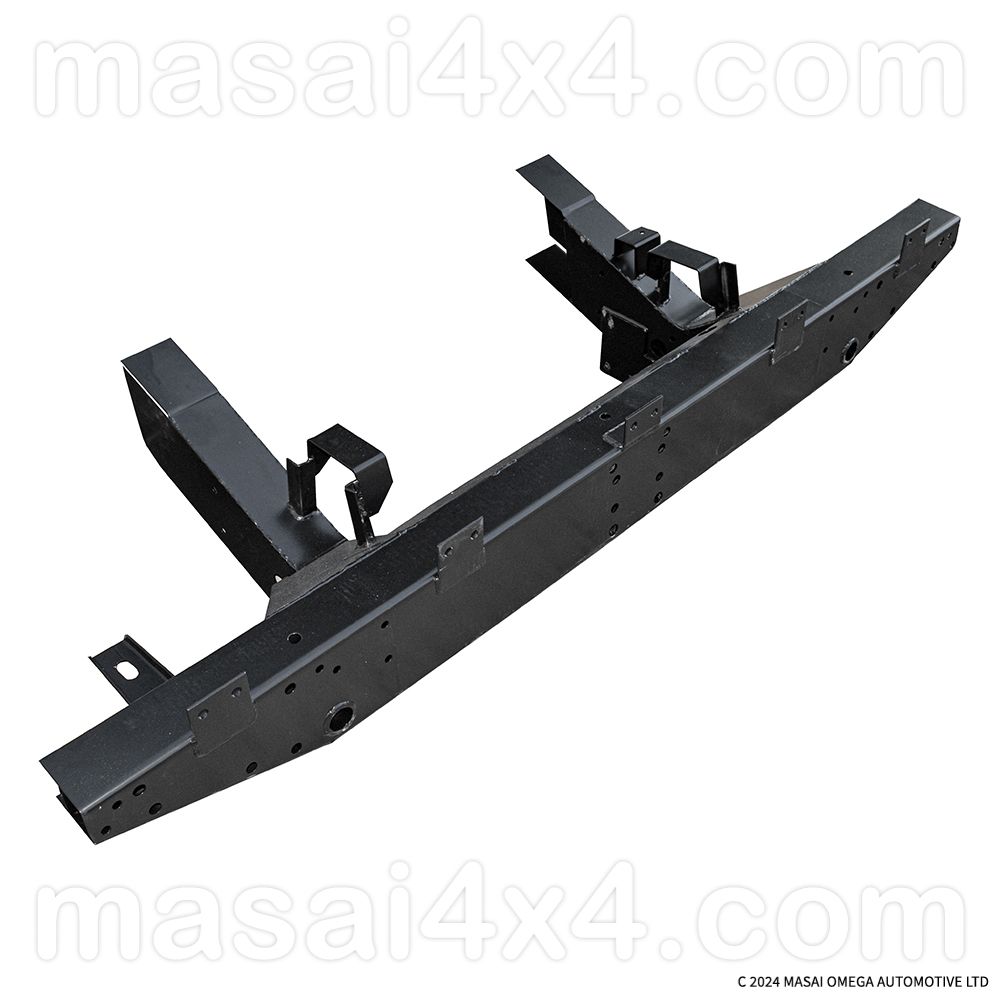

Rear Crossmember with Long Extensions For Land Rover Defender

The rear crossmember is the most vulnerable structural component of the Land Rover Defender chassis. Our replacement crossmembers with long extensions provide a comprehensive solution for severe corrosion, allowing you to cut back further into the chassis rails to reach fresh, sound metal. This "long-arm" design ensures a much stronger structural joint than a standard short-extension replacement.

Precision Engineering for Every Era Because Land Rover refined the chassis design several times over the decades, we offer specific variants to ensure 100% compatibility with your vehicle's fuel tank mounting, exhaust routing, and suspension setup.

Available Variants:

• Defender 90 & 110 (Pre-TD5): Designed for the early 90 and 110 models (including 2.5NA, Turbo Diesel, 200TDi and 300TDi). These feature the correct classic profile and mounting points for early-style fuel tanks and body tabs.
• Defender 90 & 110 (TD5 / 2.4 & 2.2 Puma): Updated to accommodate the rear-mounted plastic fuel tanks and specific chassis rail profiles used from 1998 through to 2016. These include the necessary internal strengthening and bracketry for the later-style towing setups.
• Defender 90 (300TDi Special): A specific variant for the 300TDi era that includes integrated anti-roll bar brackets. This ensures that if your original mounts have rotted away with the crossmember, you can restore your suspension handling in one single installation.

Built for Maximum Durability Manufactured from high-strength structural steel, these crossmembers are built to withstand heavy-duty towing and off-road recovery. The long extensions wrap around the existing chassis rails, providing a generous welding surface area for a permanent, MOT-compliant repair.

Key Features:

• Long Extensions: Extends further down the chassis rails to bypass common rot areas, ensuring a weld to clean, thick steel.
• Original Profile: Features all correct holes for wiring looms, body mounting tabs, and towing electrics.
• Structural Reinforcement: Internal stiffeners are included where required to maintain factory-rated towing capacities.
• Clean Finish: Supplied in a storage-stable finish, ready for professional welding and your choice of protective coating (paint, wax, or galvanising).

Technical Specifications:

• Compatibility: Land Rover Defender 90 and 110 (Select variant by engine/year).
• Material: Heavy-gauge structural steel.
• Design: Full-width rear crossmember with extended chassis leg sections.

Installation Note: This is a major structural repair. We recommend the use of chassis jigs or careful measurement to ensure the crossmember is welded square to the chassis. This is essential for the correct alignment of the rear body tub, door slam, and towing equipment.
